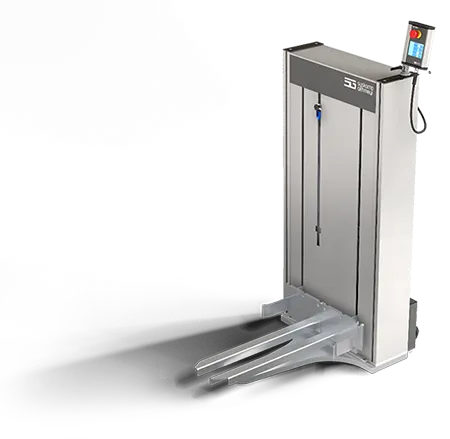

Model 2000 and 2300
The small box lifters
Maximum load capacity 2,000 N, lifting height up to 1,000 mm (KLT lifter 2000) or 1,300 mm (KLT lifter 2300).
Ergonomics · Online configurator
KLT lifter: precisely configured. Ergonomically optimised.
Set size, load capacity and equipment exactly to your process – no compromises in your material supply.
- up to 3,000 NLoad capacity
- 95–1,300 mmLifting height
- 40 mm/sLifting speed
- IP 54Protection class

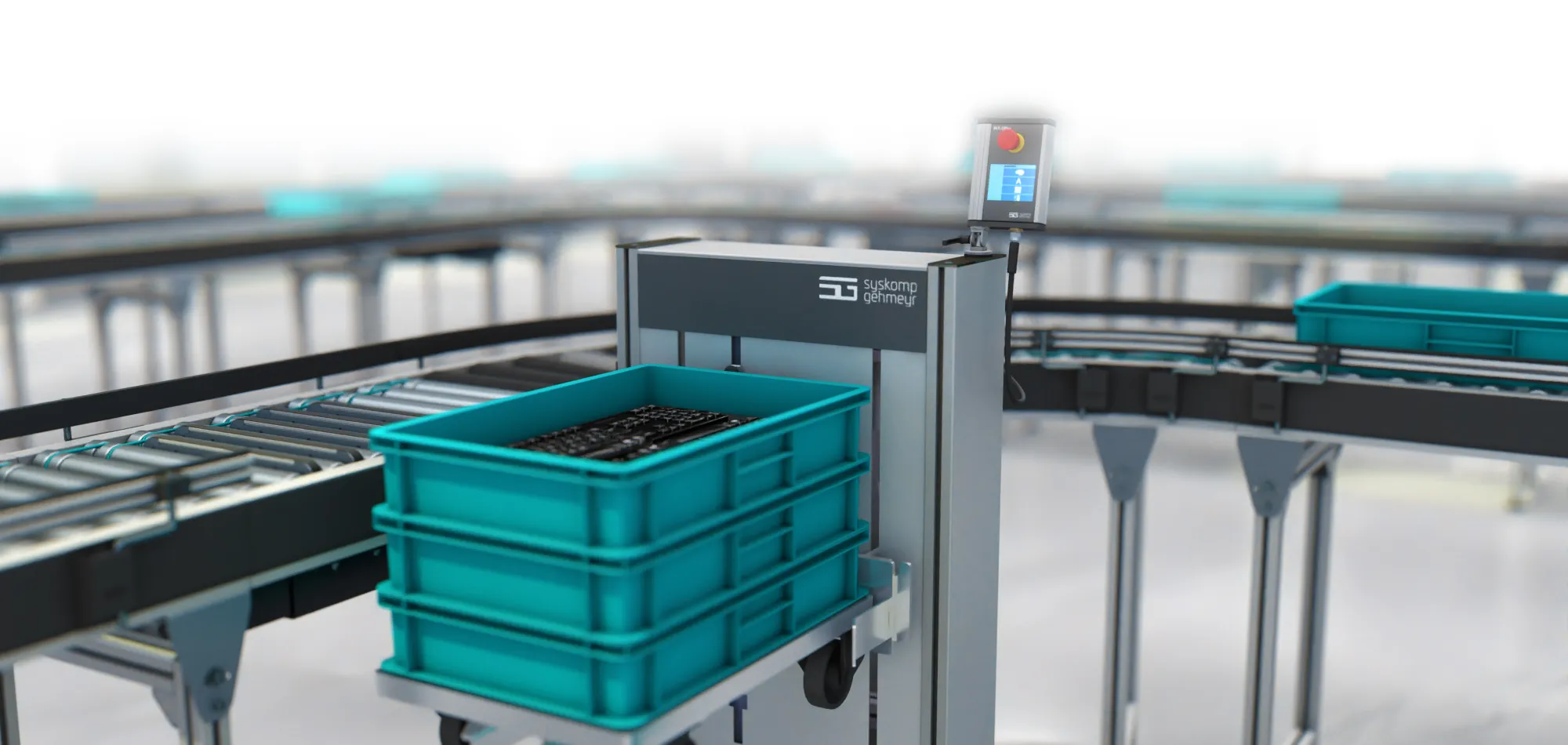

The KLT lifter – electronic height adjustment for healthy employees and efficient production
Back pain caused by repeatedly bending and lifting small load carriers leads to an average of 18 days of absence per affected employee – while productivity falls at the same time.

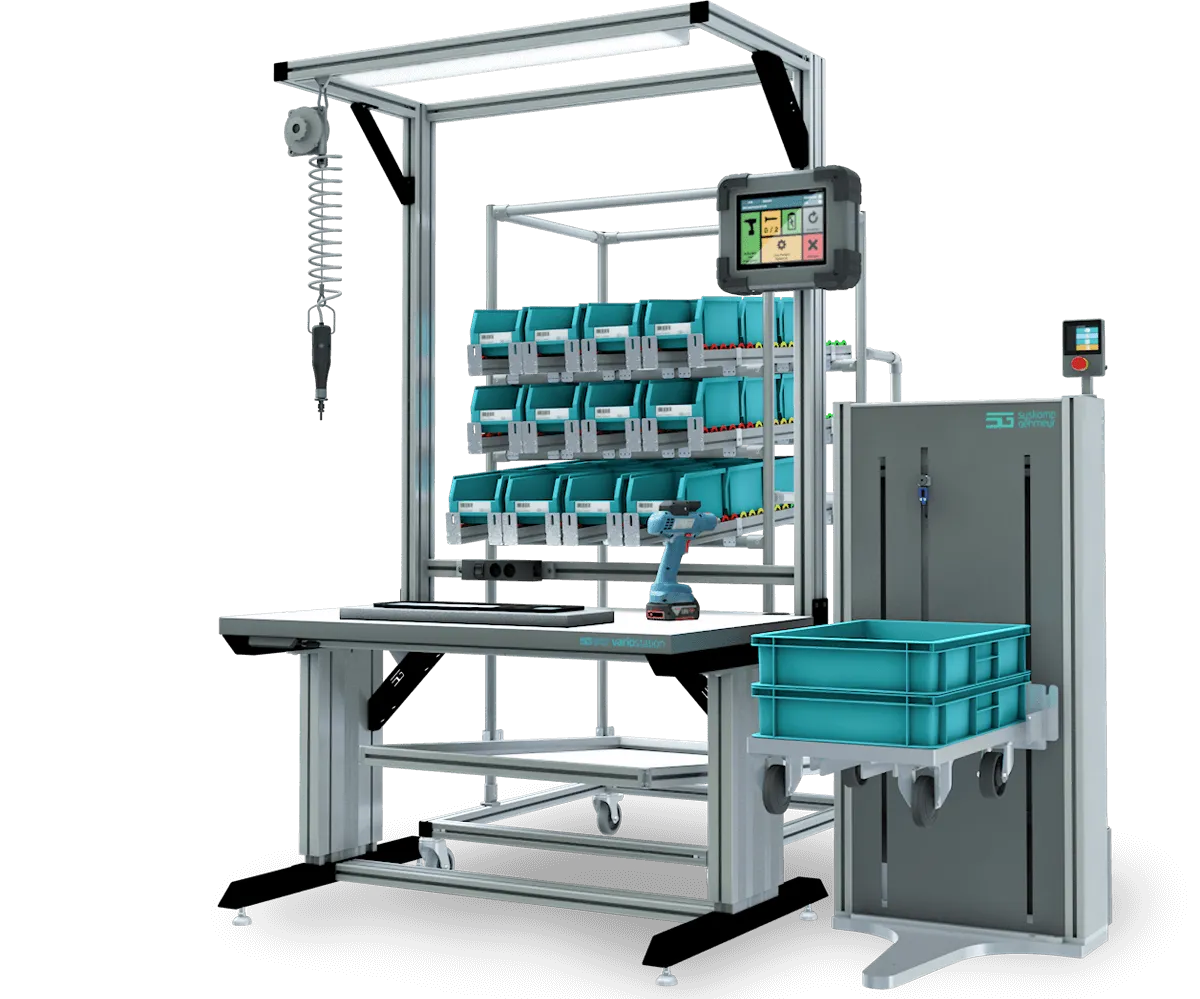

A KLT lifter is an electronic box lifting unit for ergonomic handling of small load carriers and industrial containers right at the workstation. Automatic height adjustment always positions material at the optimal working height – without manual lifting or bending. Configurable with load capacities up to 3,000 N and lifting heights up to 1,300 mm.
Online configurator
Configure your KLT lifter now
Put together size, load capacity, loading direction and equipment exactly to your requirements – for measurably less strain, higher productivity and maximum process flexibility.
The configurator is currently available in German. Need help? We are happy to guide you through it in English.
Need individual advice or have complex requirements? Call us: +49 9621 67547-0 or write to sales@syskomp-group.com – or use our contact form.
Product features
Why KLT lifters measurably improve your production
Material at the optimal working height – no lifting, no bending.
Protect health, reduce costs
Ergonomic picking at chest height eliminates straining movements – fewer back complaints, fewer sick days, higher job satisfaction.
Increase productivity
Faster access to material without physical exhaustion increases throughput with less physical stress.
Flexibility through modularity
Adapts to different container sizes, loads and processes. Mobile versions can be used at changing workstations.
Applications
Versatile – wherever containers are moved
KLT lifters integrate seamlessly into existing processes. The modular design allows later adjustments to changed processes.
01
Assembly lines & machines
Material supply at assembly lines and production machines, also for machine loading.
02
Order picking & goods receipt
Ergonomic material removal in order picking as well as in goods receipt.
03
Set-up stations
Set-up stations with changing container sizes – load capacity, lifting height and loading direction configured to suit.
04
High part variety
Workstations with many different parts where containers are changed constantly.
Systems and modules
Models and operation
Two model series with two lifting heights each, loadable from different directions. The technical data of all four models are in the table below.

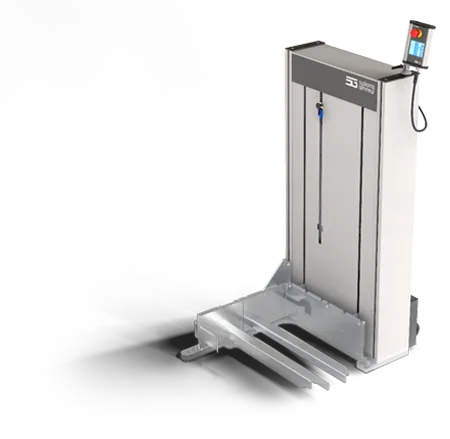

Model 3000 and 3300
The large box lifters
Maximum load capacity 3,000 N, lifting height up to 1,000 mm (KLT lifter 3000) or 1,300 mm (KLT lifter 3300).

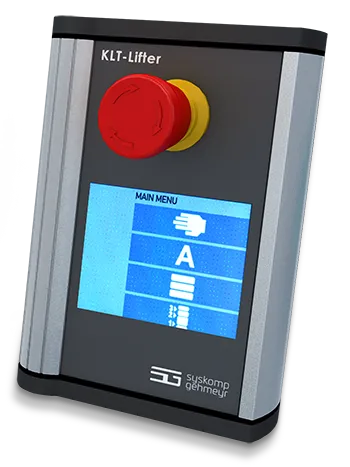

3.5″ touch control panel
Alternatively: robust push-button control panel
Clear display showing running time and number of strokes in the info dialogue. After 60,000 strokes or 5,000 operating hours, the lifter reports that a service is due.
Technical data
Technical specifications KLT lifter
| Drive | Electric geared motor with brake |
|---|---|
| Operating modes | manual, automatic (stacking/unstacking via photoelectric sensor), position, stack |
| Photoelectric sensor | infinitely adjustable to working height, optional second sensor |
| Control panel | 3.5″ touch (order no. 14053) or push-button (order no. 14052) |
| Surface | anodised aluminium or galvanised steel; powder-coated in RAL 7035 |
| Interfaces | external communication via the controller, two free electrical inputs |
|---|---|
| Height sensor | optional, repeatability max. 1 mm in position mode |
| Software | update via USB link |
| Loading | front or side, each lengthwise or crosswise; can be converted later |
| Service | notification after 60,000 strokes or 5,000 operating hours; maintenance kit order no. 15999 |
Technical data of the models
| Feature | Model 2000 | Model 2300 | Model 3000 | Model 3300 |
|---|---|---|---|---|
| Order number | 15200 | 15230 | 15300 | 15330 |
| Dimensions W × H × D (without fork) | 600 × 1216 × 290 mm | 600 × 1516 × 290 mm | 700 × 1286 × 290 mm | 700 × 1586 × 290 mm |
| Lifting height | 95 – 950 mm | 95 – 1250 mm | 95 – 1000 mm | 95 – 1300 mm |
| Max. load capacity | 2000 N | 2000 N | 3000 N | 3000 N |
| Power supply | 230 V / 50 Hz, 16 A | 230 V / 50 Hz, 16 A | 230 V / 50 Hz, 16 A | 230 V / 50 Hz, 16 A |
| Power consumption | 0.25 kW | 0.25 kW | 0.56 kW | 0.56 kW |
| Protection class | IP 54 IEC 529 | IP 54 IEC 529 | IP 54 IEC 529 | IP 54 IEC 529 |
| Max. lifting speed | 40 mm/s | 40 mm/s | 40 mm/s | 40 mm/s |
Download
KLT lifter catalogue and CAD data
All models, operating modes and accessories of the KLT lifter at a glance – ideal for your preliminary planning.
FAQ
Frequently asked questions – KLT lifter
What are KLT lifters and what are they used for?
A KLT lifter is an electronic box lifting unit that automatically raises and lowers small load carriers (KLT), blisters or other industrial containers. It brings material at the workstation or machine to an ergonomically optimal height – without lifting or bending.
Which KLT lifter model suits my requirements?
That depends on lifting height and load: model 2000 (95–950 mm, 2,000 N) for standard workstations, model 2300 (95–1,250 mm, 2,000 N) for higher stacks, model 3000 (95–1,000 mm, 3,000 N) for heavier containers and model 3300 (95–1,300 mm, 3,000 N) for demanding applications.
How do I reduce physical strain when removing material from small load carriers (KLT)?
An infinitely adjustable photoelectric sensor detects when a container has been removed and lifts the next one to the ideal position. The unit works in manual, automatic, position and stack mode at a lifting speed of 40 mm/s.
Can I adapt a KLT lifter to changed production layouts later?
Yes. The lifter can be converted from side to front loading at a later date. Castors allow it to be moved, all-round slots allow mounting to transfer systems or machine enclosures, and an adjustable foot ensures a stable stand on uneven floors.
How do I integrate KLT lifters into existing production controls?
Yes. The controller sends signals such as “height reached” to PLC systems and has two free electrical inputs for buttons or sensors. An optional height sensor achieves a repeatability of max. 1 mm in position mode.
How do I minimise downtime through timely maintenance of lifting units?
After 60,000 strokes or 5,000 operating hours, the lifter reports on the control panel that a service is due. The touch control panel shows running time and number of strokes; a maintenance kit (order no. 15999) contains cloths, grease, brush and instructions.
Is the configurator available in English?
The configurator is currently available in German. All values are numbers and units, so it is easy to use – and our sales team is happy to guide you through it in English by phone or email.
